OUTDOOR FIBER OPTICAL CABLE

The Duct and Non Self-Supporting Optical Cable Product
Applications: The kind of cable is suitable for duct, non self-supporting aerial installation, groove, tunnels, leading in and cable trench, etc
Characteristics: Excellent water-blocking performance; Excellent tensile and temperature performance
Operating Temperature: -40℃～+70℃

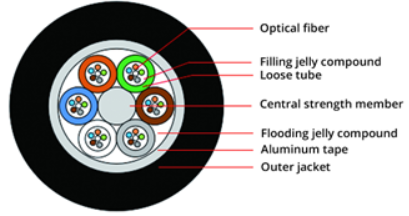

GYTA

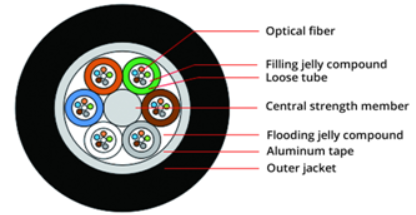

Product Description	GYTA (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

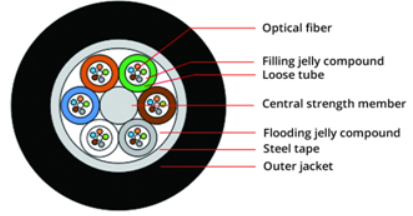

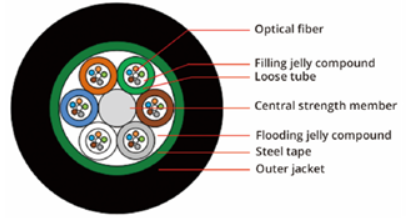

GYTS

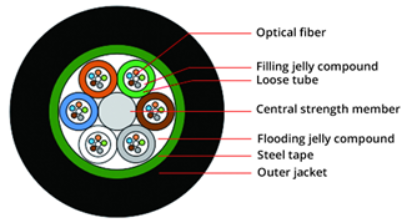

Product Description	GYTS (Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

GYFTY

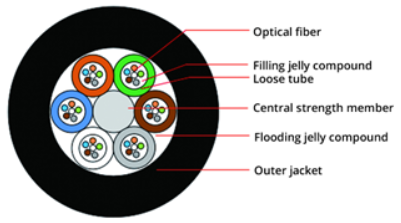

Product Description	GYFTY (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

GYFTA
Product Description	GYFTA (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

GYFTS
Product Description	GYFTS (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

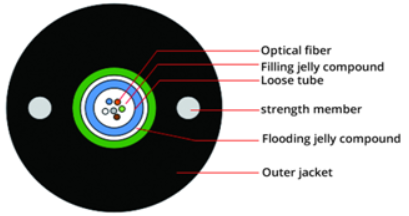

GYXTW
Product Description	GYXTW (Structure with central tube, Metal strength member, Flooding jelly compound, PE jacket with steel wire)
Standards	YD/T 769-2010 Outdoor central tube optical cable for telecommunications

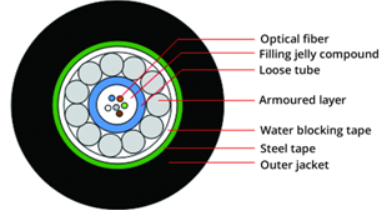

GYXS
Product Description	GYXS (Structure with central tube, Steel wire armoring, Steel-polyethylene adhesive jacket)
Standards	YD/T 769-2010 Outdoor central tube optical cable for telecommunications

GYFXY
Product Description	GYFXY (Structure with central tube, Non-metal strength member, PE jacket)
Standards	YD/T 769-2010 Outdoor central tube optical cable for telecommunications

The Duct and Non Self-Supporting Optical Cable Product
Applications: The kind of optical cable is suitable for buried installation.
Characteristics: Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance.
Operating Temperature: -40℃～+70℃

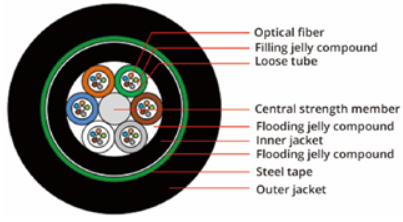

GYTY53
Product Description	GYTY53 (Loose tube stranding, Metal strength member, Flooding jelly compound, PE inner jacket,Steel-polyethylene adhesive outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

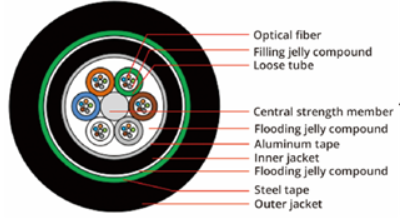

GYTA53
Product Description	GYTA53 (Loose tube stranding, Metal strength member, Flooding jelly compound,Aluminum polyethylene adhesive inner jacket, Steelpolyethylene adhesive outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

GYFTY53
Product Description	GYFTY53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Steel-polyethylene adhesive outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

GYFTA53
Product Description	GYFTA53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

Steel Wire Armoured Optical Cable Product
Applications: The kind of optical cable is suitable for oshore, water bottom and climbing installation.
Characteristics: Excellent water-blocking performance; Good temperature performance; Excellent lateral pressure resistance, mechanical and temperature performance.
Operating Temperature: -40℃～+70℃

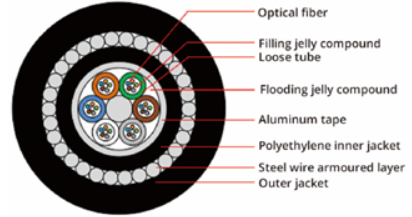

GYTA33
Product Description	GYTA33 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Single steel wire armoring, PE outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

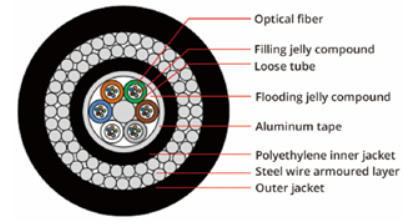

GYTA33
Product Description	GYTA333 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, double smaller round steel wire armoring, PE outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

All Dielectric Strengthen Optical Cable Product
Applications: The kind of cable is suitable for duct, aerial and buried installation; The kind of cable is suitable for area with lightning strike.
Characteristics: Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance; Excellent electromagnetic interference resistance.
Operating Temperature: -40℃～+70℃

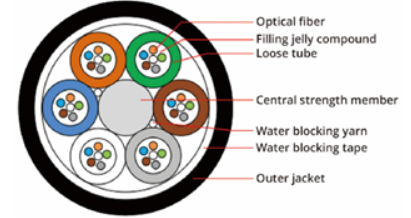

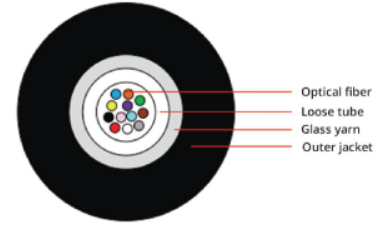

GYFY
Product Description	GYFY (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Glass yarn strength member, PE outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

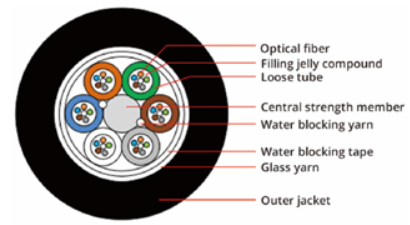

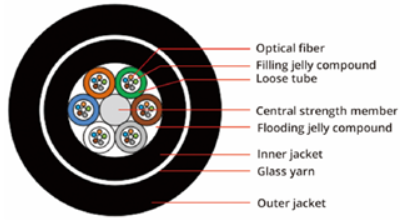

GYFTY73
Product Description	GYFTY73 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Glass yarn strength member, PE outer jacket)
Standards	YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

All Dielectric Self-Supporting Aerial Cable (ADSS) Product
Applications: The kind of cable is suitable for electric field and self-supporting aerial.
Characteristics: Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance; Excellent electromagnetic interference resistance.
Operating Temperature: -40℃～+70℃


Single Protector ADSS

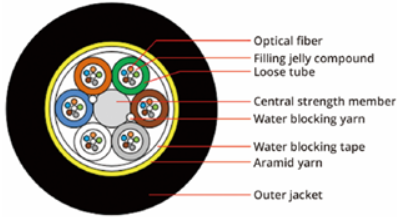

Product Description	Single protector ADSS (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket)
Standards	GB/T18899-2002 All dielectric self-supporting optical cable



Double Protector ADSS

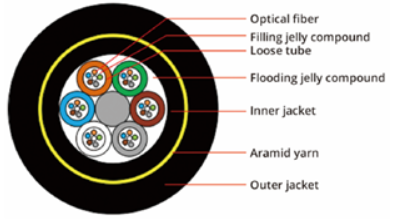

Product Description	Double protector ADSS (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Aramid yarn strength member, PE outer jacket)
Standards	GB/T18899-2002 All dielectric self-supporting optical cable

Optical Fiber Ribbon Cable Product
Applications: The kind of cable is suitable for metropolitan area network especially the main cabling in the loop; The kind of cable is suitable for duct and non self-supporting aerial installation.
Characteristics: High concentration of the fibers; Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance.
Operating Temperature: -40℃～+70℃

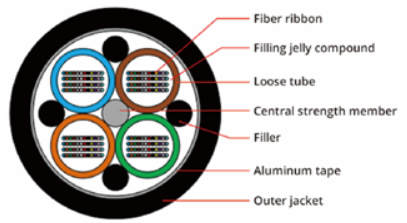

GYDTA
Product Description	GYDTA (Optical fiber ribbon, Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
Standards	YD/T 981. 3-2009 Optical fiber ribbon cable for access network

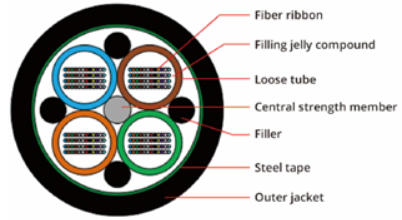

GYDTS
Product Description	GYDTS (Optical fiber ribbon, Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
Standards	YD/T 981. 3-2009 Optical fiber ribbon cable for access network

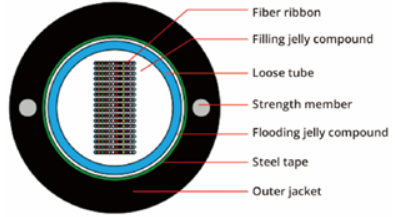

GYDXTW
Product Description	GYDXTW (Optical fiber ribbon, Central tube structure, Flooding jelly compound, Steel-polyethylene adhesive jacket)
Standards	YD/T 981. 3-2009 Optical fiber ribbon cable for access network

Self-Supporting Optical Cable Product
Applications: The kind of cable is suitable for duct and self-supporting aerial installation.
Characteristics: Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance; The figure 8 structure with messager wire is convenient for installation.
Operating Temperature: -40℃～+70℃

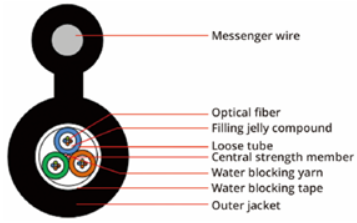

GYTC8Y

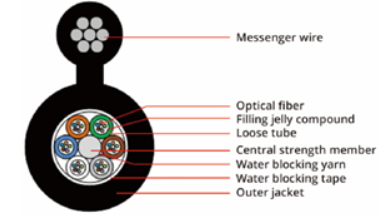

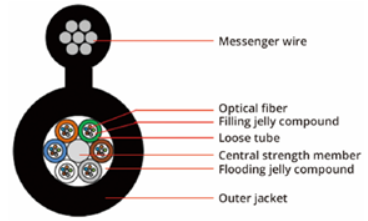

Product Description	GYTC8Y (Loose tube stranding, Metal strength member, Flooding jelly compound, PE jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

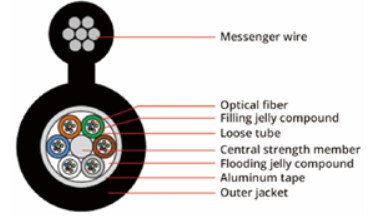

GYTC8A
Product Description	GYTC8A (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

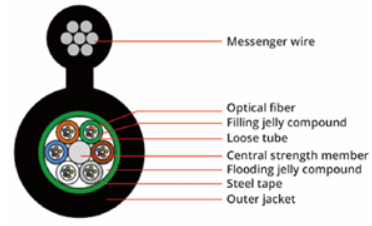

GYTC8S
Product Description	GYTC8S (Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

GYTC8Y
Product Description	GYFC8Y (Loose tube stranding, Non-metal strength member, Half dry water-blocking, PE jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

Light Self-Supporting Optical Cable Product
Applications: The kind of cable is suitable for duct and self-supporting aerial installation.
Characteristics: Excellent water-blocking performance; Excellent lateral pressure resistance, mechanical and temperature performance; The Figure 8 structure optical cable is light and convenient.
Operating Temperature: -20℃～+70℃


GYFC8Y
Product Description	GYFC8Y (Loose tube stranding, Non-metal strength member, Half dry water-blocking, PE jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

GYFC8Y

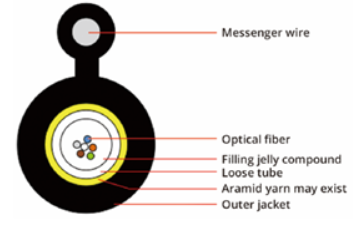

Product Description	GYXC8Y (Central tube structure, PE jacket, Figure 8)
Standards	YD/T 1155-2011 Figure 8 self-supporting optical cable for telecommunications

Jetnet Optical Cable Product
Applications: The kind of cable is suitable for the installation of air-blowing.
Characteristics: Lighter and small diameter; Excellent bending performance; Excellent lateral pressure resistance, mechanical and temperature performance.
Operating Temperature: -40℃～+70℃


GCYFY
Product Description	GCYFY(Loose tube stranding, Tiny tube, Dry water-blocking , PE jacket)
Standards	YD/T 1460-2006 Jetnet optical cable for telecommunications and fiber unit

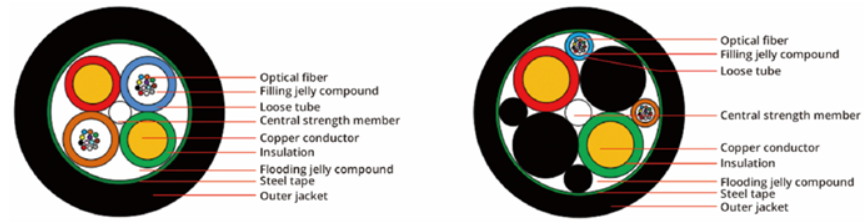

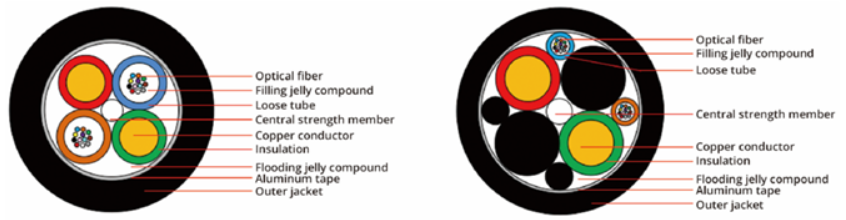

Opto Electric Composite Cable for Telecommunications
Applications: The kind of cable is suitable for remote dc power supply system and the place to get electricity dicultly. The kind of cable can solve the problem of communication equipment and power supply in mobile communication network and FTTH.
Characteristics: At the same time realize optical and electricity communications; Excellent lateral pressure resistance, mechanical and temperature performance.
Operating Temperature: -40℃～+70℃


GDTA
Product Description	GDTA(Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive jacket)
Standards	YD/T 2159-2010 Opto electric composite cable for telecommunications



GDTA
Product Description	GDTS (Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive jacket)
Standards	YD/T 2159-2010 Opto electric composite cable for telecommunications
