Details

---

INDOOR FIBER OPTICAL CABLE

Optical Fiber Patch Cord Product
Applications: The kind of cable is suitable for connections of communication equipments
Characteristics: Lighter and small diameter, flame retardant, separated easily and excellent softness; high strength of aramid yarn strength member ensures excellent tensile resistance; tight buffer fiber and dry structure, convenient to install and maintain
Operating Temperature: -20℃～+70℃

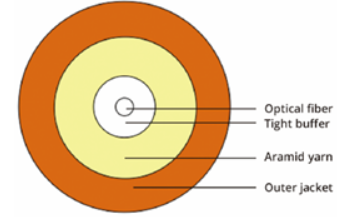

Single Fiber Round Cable GJFJH
Product Description	GJFJH (Tight buffer fiber and dry structure, Aramid yarn strengh member, LSZH jacket)
Standards	YD/T 1258. 2-2009 Indoor fiber optical cable The second part:Terminal cable assembly with single core and dual core cable

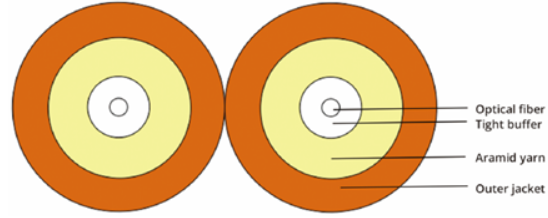

Duplex Figure '8' Cable GJFJBH
Product Description	GJFJBH (Tight buffer fiber and dry structure, Aramid yarn strengh member, LSZH jacket)
Standards	YD/T 1258. 2-2009 Indoor fiber optical cable The second part:Terminal cable assembly with single core and dual core cable

Indoor Cabling Cable Product
Applications: The kind of cable is suitable for the occasion of multi-way transmission between instrument and communication equipments
Characteristics: Lighter and small diameter, flame retardant, separated easily and excellent softness; high strength of aramid yarn strength member, excellent tensile resistance; tight buffer fiber and dry structure make installation and maintenance conveniently
Operating Temperature: -20℃～+70℃


Cabling Cable GJPFJH
Product Description	GJPFJH (Tight buffer fiber structure, Aramid yarn strengh member, LSZH jacket)
Standards	YD/T 1258.4-2005 Indoor fiber optical cable Multicore cable

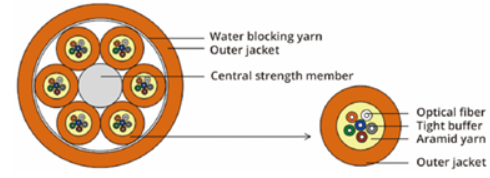

Combined Cabling Cable GJPFJH
Product Description	GJPFJH (Tight buffer fiber structure, Standard structure, Aramid yarn strengh member, LSZH jacket)
Standards	YD/T 1258. 4-2005 Indoor fiber optical cable Multicore cable

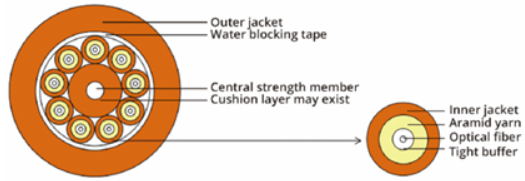

Break-out Cable GJBFJH
Product Description	GJBFJH (Tight buffer fiber and dry structure, Aramid yarn strengh member, Water blocking tape, LSZH jacket)
Standards	YD/T 1258. 4-2005 Indoor fiber optical cable Multicore cable

FTTX Drop Cable Product
Applications: The kind of cable is suitable for fiber to the home
Characteristics:

• Bow-Type Drop Cable
  • Lighter and small diameter, flame retardant, separated easily and excellentsoftness; the glass fiber bar, aramid fiber rods and small wire are as strength member; the steel wire and stranding steel wire have excellent tensile strength as the self-supporting bow-type drop cable’s messenger wire; excellent flame retardant performance.
• Double Core Side by Side Bow-Type Drop Cable
  • Two Bow-type cables can be installed at the same time; each typical cable can be separately terminated and doesn’t need to be separated.
• Rotundity Drop Cable
  • Small diameter, Aramid yarn strength member, Excellent softness and high strength
• Duct Bow-Type Drop Cable
  • The kind of cable is suitable for duct to the home; excellent waterproof performance and excellent tensile resistance; excellent lateral waterproof performance.
• Water-proof Cable
  • Excellent lateral waterproof performance and excellent tensile resistance; each sub-cable unit can be separately terminated.

Operating Temperature: -20℃～+70℃

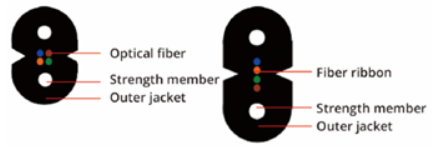

Indoor Cabling Bow-Type Drop Cable (GJXH, GJXDH, GJXFH, GJXFDH)

Traditional Bow-Type Drop Cable
Product Description	GJXH (Metal strength member, LSZH jacket, Non self-supporting) GJXDH (Optical fiber ribbon, Metal strength member, LSZH jacket,Non Self-Supporting) GJXFH (Non-metal strength member, LSZH jacket, Non self-supporting) GJXFDH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Non self-supporting
Standards	YD/T 1997.1-2014 Bow-type drop cable for access network



Double Core Side by Side Bow-Type Drop Cable
Product Description	Double core independent GJXH (Metal strength member, LSZH jacket, Non self-supporting) Double core independent GJXFH (Non-metal strength member, LSZH jacket, Non self-supporting)
Standards	YD/T 1997.1-2014 Bow-type drop cable for access network

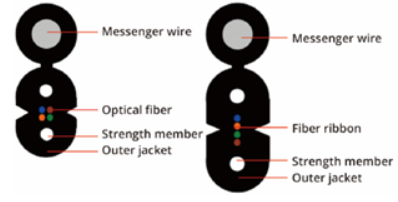

Outdoor Cabling Bow-Type Drop Cable (GJYXCH, GJXDCH, GJYXFCH, GJYXFDCH)

Traditional Bow-Type Drop Cable
Product Description	GJYXCH (Metal strength member, LSZH jacket, self-supporting) GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting) GJYXFCH (Non-metal strength member, LSZH jacket, self-supporting) GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-supporting
Standards	YD/T 1997.1-2014 Bow-type drop cable for access network

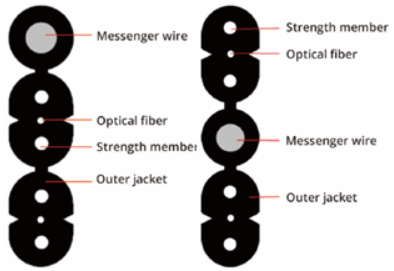

Double Core Side By Side Bow-Type Drop Cable
Product Description	Double core independent GJYXCH (Metal strength member, LSZH jacket, Non self-supporting) Double core independent GJYXFCH (Non-metal strength member, LSZH jacket, Non self-supporting)
Standards	YD/T 1997.1-2014 Bow-type drop cable for access network

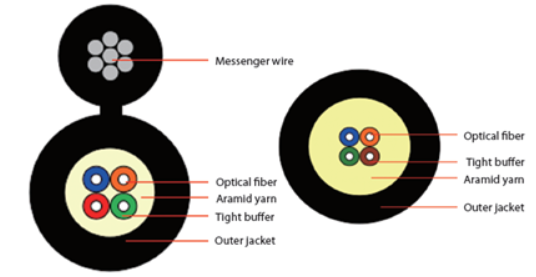

Rotundity Drop Cable (GJFJH, GJYFJCH)
Product Description	GJFJH (Tight buffer fiber and dry structure, Aramid yarn strengh member, LSZH outer jacket) GJYFJCH (Tight buffer fiber and dry structure, Aramid yarn strengh member, LSZH outer jacket, self-supporting)
Standards	YD/T 1258. 4-2005 Indoor fiber optical cable Dual core cable

Duct Bow-Type Drop Cable (GJYXH03, GJYXDH03, GJYXFH03, GJYXFDH03)
Product Description	GJYXH03 (Metal strength member, LSZH inner jacket, Water blocking tape, PE outer jacket) GJYXFH03 (Non-metal strength member, LSZH inner jacket, Water blocking tape, PE outer jacket)
Standards	YD/T 1997-2009 Bow-type drop cable for access network

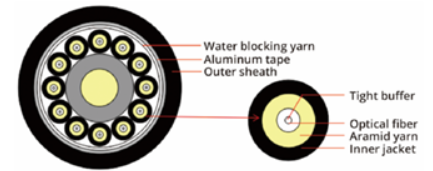

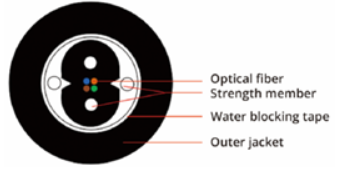

Water-Proof Cable GYBJA
Product Description	GYBJA (Metal strength member, LSZH inter sheath, Water blocking tape, Outer jacket)
Standards	YD/T 1258. 4-2005 Indoor fiber optical cable Dual core cable

RRH Fiber Optical Cable For Base Station
Applications: The kind of cable is used as drop cable at communication base station
Characteristics: High strength of aramid yarn strength member, Lighter and small diameter, Excellent tensile resistance; each sub-cable unit can be directly terminated by stranded connectors; to meet the requirement of flame retardant and environmental protection, LSZH flame retardant materials is chosen
Operating Temperature: -20℃～+70℃


Φ7. 0 RRH Fiber Optical Cable GYFJH
Product Description	GYFJH (Non-metal strength member, Tight buffer fiber structure, LSZH jacket)
Standards	D/T 2289. 1-2011 RRH unit fiber optical cable The first part: Fiber cable

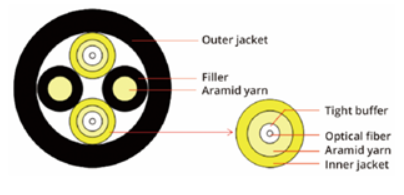

Wild Combat Cable
Applications: The kind of cable is suitable for deploying and retracting repeatly in special and wild environment
Characteristics: Lighter and small diameter, excellent performance of tensile strength resistance; TPU outer jacket has excellent flame retardant, lateral pressure and abrasion resistance; widely Operating Temperature
Operating Temperature: -40℃～+80℃


Wild Combat Cable GYFJZU
Product Description	GYFJZU (Tight buffer fiber structure, Aramid yarn strengh member, TPU outer jacket)
Standards	GJB 1428B-2009 Cable general specification

Indoor Invisible Cable
Applications: The kind of cable is suitable for fiber to the home
Characteristics: Low cost and abrasion, high strength and softness; Low-temperature resistant, Excellent oil resistance, chemicals and environmental resistance; Good toughness and concealment, install and maintain conveniently. Apply to fiber to the home
Operating Temperature: -20℃～+70℃

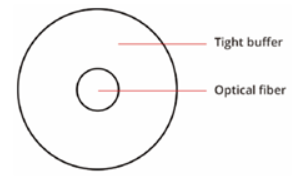

Φ0. 9 Invisible Tight Buffer Fiber
Product Description	Φ0. 9 Invisible Tight Buffer Fiber (Tight buffer fiber, Thermoplastic TPU tight buffer)
Standards	YD/T 1997-2009 Bow-type drop cable for access network YD/T 1258-2005 Indoor fiber optical cable



Indoor Cabling Invisible Bow-Type Drop Cable (GJXJH, GJXFJH)
Product Description	GJXJH (Tight buffer fiber and dry structure, Metal strength member, LSZH jacket, Non self-supporting) GJXFJH (Tight buffer fiber and dry structure, Non-metal strength member, LSZH jacket, Non self-supporting)
Standards	YD/T 1997-2009 Bow-type drop cable for access network YD/T 1258-2005 Indoor fiber optical cable
